CP-45F/45FB
DXF
PDF
CP-45FBx2
DXF
PDF
CP-45FRBN
DXF
PDF
  • ~dia. 45mm
  • Dual output

CP-45F Series

Product specifications

 Features High AccuracyDual Output
Total Resistance 0.5k, 1k, 2k, 5k, 10k, 20kΩ
Effective Electrical Travel 350°
Independent Linearity ±0.1%FS
Rated Dissipation 3W/70℃
Housing dia. φ45mm
Shaft dia. φ4, φ6mm

【Option】
Additional Center Taps :
For Output : CP-45F/45FB-CT(A) No shorted angle
For Input : CPP-45F/45FB-CT(B) Shorted on Tap ( Shorted angle approximately 3°)
Two Gangs / Output Phase
*If you need something different from our standard models, please contact us.



【Applications】

Autopilot:Control/Steering angle

Automobile Inspection Equipment:Measurement/Rotating angle of Steering wheel

Crane、Aerial work platform:Control/Pivoting angle

CT Scanning:Control/Scanning tilt

Electric Locomotive:Control/Speed adjusting lever

Wind Power:Control/Wind direction, Blade angle

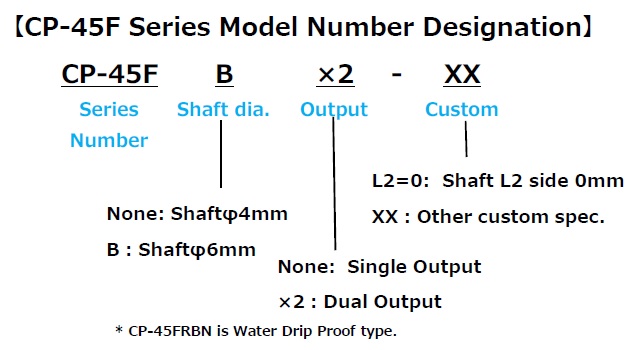

Part numbers
